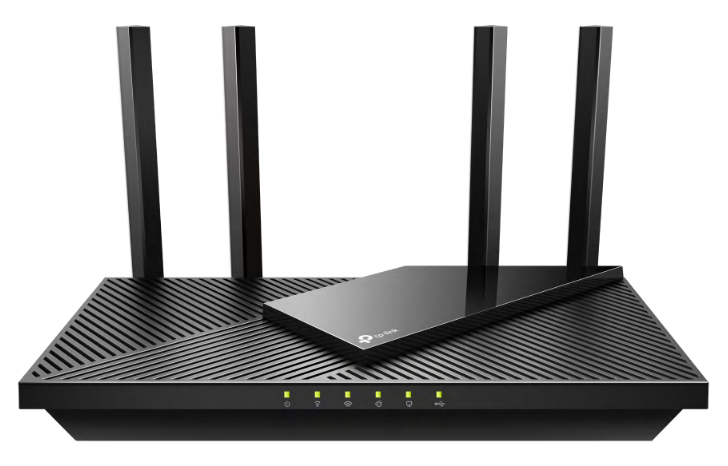

Experience ultra-fast AX3000 dual-band WiFi up to 3.0 Gbps.
Enjoy wider coverage and connect more devices with OFDMA and four high-gain antennas.
Stay secure and smart with VPN support, HomeShield security, EasyMesh, and Alexa compatibility.

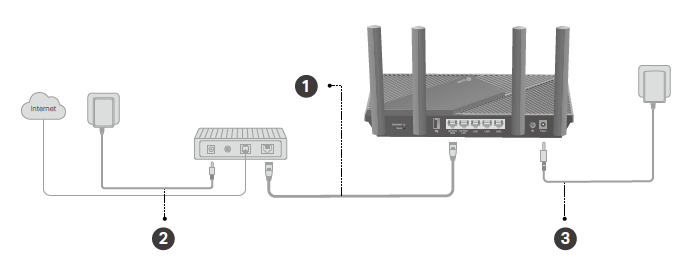

1 Connect the router

(1) Turn off the modem (ONT)
Note that the modem means the Optical Network Terminal (ONT) device, known as a fibre box.
(2) Connect the modem (ONT) to the router's 2.5 WAN port with an Ethernet cable.
(3) Turn on the modem (ONT), and then wait about 2 minutes for it to restart.
(4) Connect the power adapter to the router and turn on the router.
(5) Verify that the hardware connection is correct by checking the following LEDs.
Note that if the 2.4GHZ LED and 5GHZ LED are off, press and hold the WPS/Wi-Fi button on the back for more than 2 seconds, then release the button. Both the LEDs should turn solid on.

2 Access the router

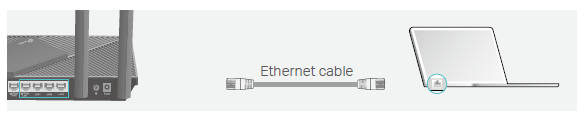

Option-1. Wired: Turn off the Wi-Fi on your computer and connect the devices as shown below.

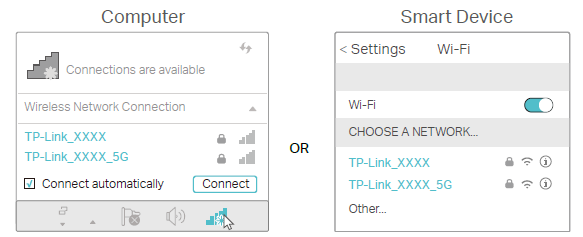

Option-2. Wireless:
a. Find the SSID (Wi-Fi name) and a password printed on the label at the bottom of the router.
b. Click the network icon of your computer or go to the Wi-Fi settings of your smart devices, and then select the SSID (Wi-Fi name) to join the network.

3 Setup the router

(1) Open a web browser (e.g. Chrome, Safari, Firefox, etc.) and type the default gateway address (e.g. 192.168.1.1).
Note that the PC you use should be connected to the router via Wired (LAN port) or Wireless (Wi-Fi).

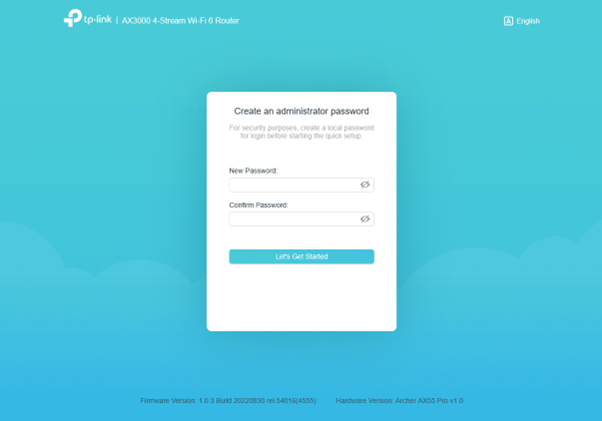

(2) Create a login password to access the router configuration

Note that the new password must be 6-32 characters long and contain no space, at least two types of the following characters: letters, numbers and symbols.

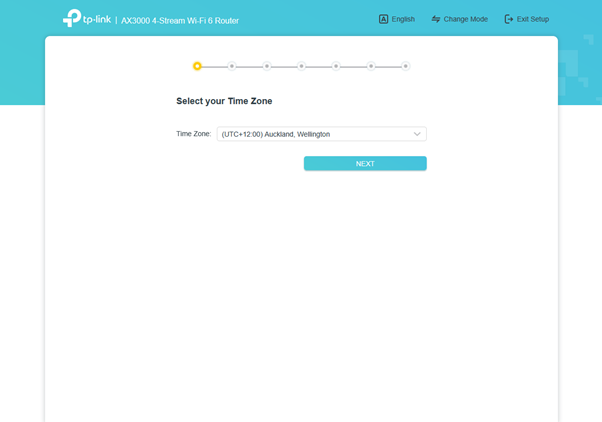

(3) Select your Time Zone
- Time Zone: (UTC+12:00) Auckland, Wellington
